TorresVault Infrastructure OS

Utility Box 01

Field Dashboard ā€¢ Digital Equipment Manual

Loading status
šŸ•’Last UpdateLoading
šŸ’§IrrigationLoading
šŸ’”LightingLoading
šŸŒ”ļøOutside-- Ā°F
šŸ§­

Command Center

At-a-Glance
Active ZoneLoadingCurrent irrigation activity
Remaining TimeLoadingCurrent zone runtime
LightingLoadingOrchard WLED group
AlertsLoadingFaults and warnings
šŸ“˜

Digital Manual

Tap to Open
šŸ’§IrrigationActive zone + runtime šŸ’”LightingWLED status šŸ”ŒWiringColor standard šŸ§©Pin MapGPIO / I2C / ADS1115 šŸš¦Status LEDColor and pattern key šŸ“”NetworkPortal + updater šŸ“øPhotosBuild images šŸ”—LinksOpen tools
šŸ’§

Irrigation

ESP32-P4
Active Irrigation ZoneLoadingsensor.irrigation_controller_active_irrigation_zone
Remaining TimeLoadingsensor.irrigation_controller_irrigation_remaining_time

Zone starts are handled by ESPHome/Home Assistant push buttons. The field dashboard only shows what is currently happening.

šŸ  Open Home Assistant
šŸ’”

Orchard Lighting

WLED
MainLoadingWLED master light
BartlettLoadingTree segment
Granny SmithLoadingTree segment
šŸ”Œ

Official Wiring Standard

Field Ref
Red3.3V / 5V DC
BlackDC Ground
GreenIĀ²C SDA
YellowIĀ²C SCL
BlueGPIO / Relay
WhiteAnalog Sensors
Orange24VAC Hot
Brown24VAC Common
PurpleComms / Future
šŸ§©

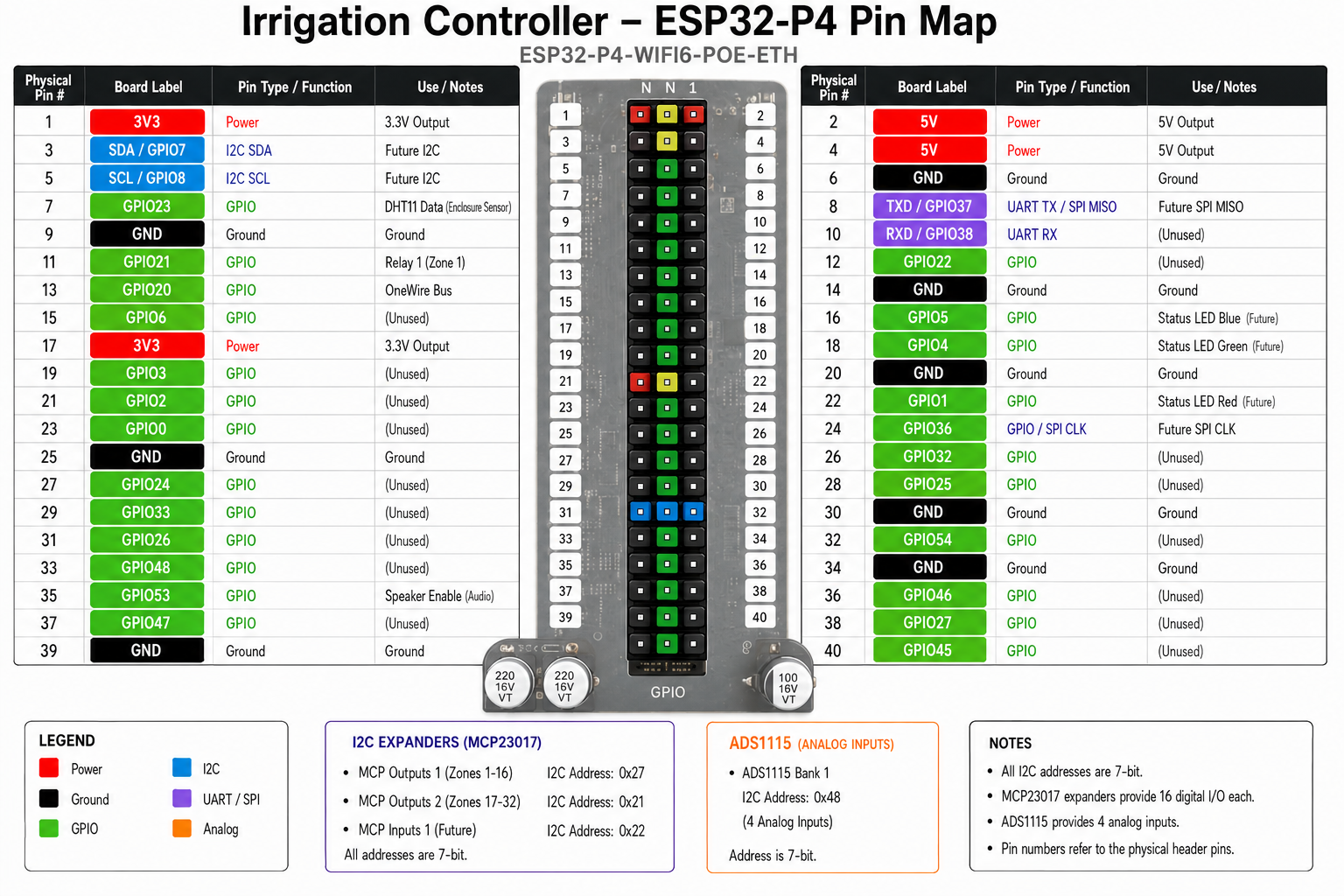

ESP32-P4 Controller Pin Map

Service Manual

GPIO, I2C, MCP23017 expanders, ADS1115 analog inputs, and field notes.

ESP32-P4 Irrigation Pin Map
šŸ§© Open full pin mapšŸ” Open image only
šŸš¦

Controller Status LED

At-a-Glance

The status LED shows the highest-priority active condition without opening Home Assistant.

RedCritical or network fault
OrangeHome Assistant offline
PurpleOTA update
BlueBooting
YellowIrrigation active
GreenNormal operation
WhiteIdentify controller
šŸš¦ Open full status LED reference
šŸ“”

Network Node

Internal
Portal DNSutility.torresvault.com
Data Sourcedata/utility-status.json
Updaterscripts/update_utility_status.py
Status AgeLoading
šŸ“ø

Build Photos

Coming Soon

Add photos of terminal blocks, relay boards, power distribution, WLED wiring, and valve wiring as the physical box comes together.
